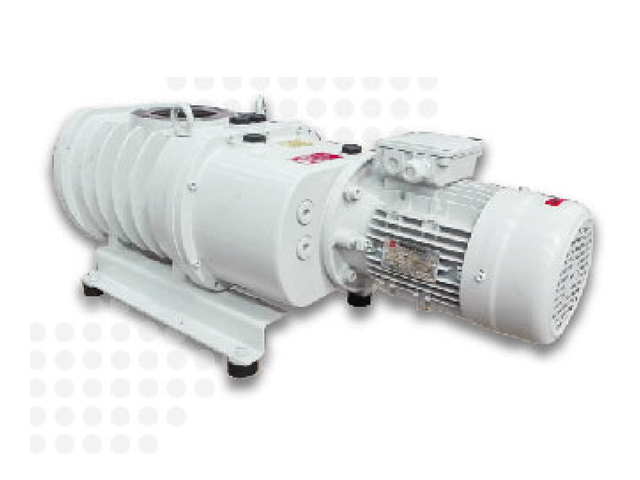

DPR罗茨泵性能特点：
●泵腔内无润滑油，实现高洁净真空/There is no lubricating oil in the pump chamber, the realization of high vacuum clean.
●转子采用进口加工设备制成，具有良好的几何对称性，实现低噪音，高寿命/Rotor made of imported processing equipment, with good geometrical symmetry, low noise, high service life.
●线形密封性好，泵浦性能最优，泵浦在低压段运行可靠性高/Linear sealing good, optimal pump performance, higher reliability pump in low pressure.
●启动快，能在短时间内达到真空/Can start fast, in a short period of time to achieve a vacuum.
●结构紧凑、重量轻，占地面积小，节能空间/Compact structure, light weight, covers an area of small, energy saving space.
|
型 号 Model |
单位 |
DPR600 |
DPR900 |
DPR1300 |
DPR1800 |
DPR3000 |
|
|---|---|---|---|---|---|---|---|
| 抽速60HZ | L/min | 13000 | 20000 | 26000 | 33000 | 63000 | |
| m³/hr | 800 | 1200 | 1600 | 2000 | 3800 | ||
| cfm | 470 | 706 | 941 | 1176 | 2235 | ||
| 终极压力 | Torr | ≤7.5*10-4 | |||||
| mbar | ≤1*10-3 | ||||||
| Pa | ≤0.1 | ||||||
| 马达 | 频率 | HZ | 50/60 | ||||
| 电压 | V | 220～440 | |||||
| 功率 | Hp | 4 | 4 | 6 | 6 | 15 | |
| KW | 2.98 | 2.98 | 4.47 | 4.47 | 11.25 | ||
| 连接 | 进气口 | ISO100 | ISO160 | ISO200 | |||
| 排气口 | ISO63 | ISO100 | ISO160 | ||||
| 尺寸(L×W×H) | mm | 721×322×233 | 778×360×250 | 848×360×272 | 778×360×272 | 1145×510×358 | |
| 重量 | kg | 160 | 210 | 220 | 225 | 570 | |
| 噪音 | dB(A) | ≤60 | ≤60 | ≤62 | ≤62 | ≤65 | |
|
备注：1、以上噪音值为搭配水冷电机无外罩之噪音值。2、以上机型如装隔音装置可再有效降低噪音3～4分贝 Note：1、above the noise value is with water-cooled motor no outer garment of noise value.2、the above models,such as sound insulation devioe can effectively redoue the noise 3-4db. |
|||||||
| 真空泵最大漏率 | Mbar 1/S | 1*10-5 | |||||
| 室温操作范围 | ℃ | 5～40 | |||||
| 最大操作湿度 | RH | 90%以下Following | |||||
说明：
德耐尔对产品不断改进，保有设计变更权，如有更改，恕不另行通知
典型应用：
适用于一般真空镀膜、烤箱、热处理、制药、化工、半导体、 TFT、LCD、LED与太阳能电池产业等。
Vacuum coating,Vacuum oven,Thermal process, pharmaceutical,Chemical,Semiconductor,TFT/LCD LED and Solar cell,etc.
