DPX系列单级旋片泵性能优势：
●材质优质、操作维护简易/The material quality, simple operation and maintenance
●工艺先进、耐久高、运行费用低/Advanced technology, high durability, low operating cost
●节能环保，结构紧凑轻便/Energy conservation and environmental protection, the structure iscompact and light
●排气洁净无油烟/Clean exhaust lampblack
●采用无弹簧旋片，实现低噪音、低震动/No spring, low noise, low vibration
●采用内置油逆止阀，实现泵无反油现象/Pump is realized by using the built-in non-return valve oil, without the phenomenon of oil
●采用内置油泵强制供油，实现泵在大气压以下长时间连续稳定运行/The pump is realized by using the built-in pump forced feed, continuous and stable operation under atmospheric pressure for a long time
|
型 号 Model |
DPX-10 |
DPX-16 |
DPX-21 |
DPX-40 |
DPX-63 |
DPX-100 |
DPX-160 |
DPX-200 |
DPX-250 |
DPX-300 |
DPX-630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 抽速 m3/h | 10 | 16 | 20 | 40 | 63 | 100 | 160 | 200 | 250 | 300 | 630 |
| 极限压力（mbar） | 2 | 2 | 1 | 0.5 | 0.5 | 0 | 0.5 | 0.5 | 0.5 | 0.5 | 0.1 |
| 电机功率（KW） | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 2.2/3.0 | 4 | 4.0/5.5 | 5 | 5.5/7.5 | 15 |
| 转速 Speed | 2800 | 2800 | 2800 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 825 |
|
最大水蒸气抽除量 Kg/h |
* | * | 0.4 | 0.7 | 1 | 1.5 | 2.5 | 4 | 4 | 4.5 | 26 |
|
噪音 Noise （dB） |
62 | 63 | 64 | 64 | 65 | 67 | 72 | 74 | 7 | 75 | 75 |
| 吸气口径（Inch） | G1/2″ | G1/2″ | G1/2″ | G1 1/4″ | G1 1/4″ | G1 1/4″ | G2″ | G2″ | G2″ | G2″ | DN100 |
|
重量 Weight （kg） |
16 | 16 | 19 | 43 | 49 | 69 | 142 | 145 | 190 | 212 | 660 |
|
外形尺寸 （L*W*H）mm |
308*215 *207 |
308*215 *207 |
421*232 *218 |
635*286 *266 |
605*308 *280 |
710*405 *290 |
761*495 *411 |
795*495 *411 |
965*585 *411 |
1010*585 *411 |
1488*888 *752 |

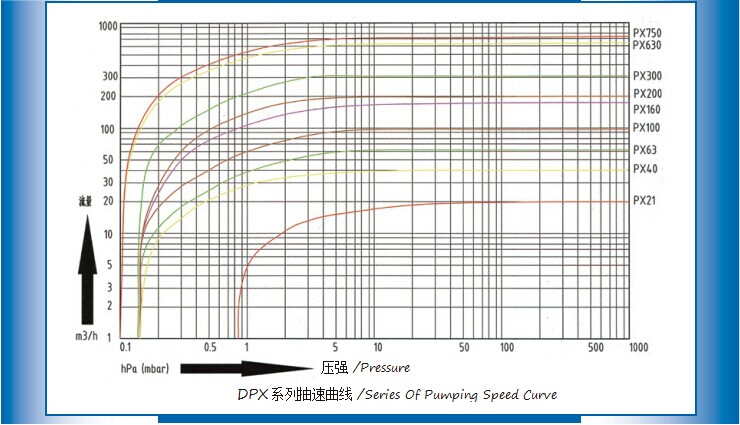

单级旋片真空泵性能曲线：
说明：
德耐尔对产品不断改进，保有设计变更权，如有更改，恕不另行通知
DPX系列单级旋片泵应用领域：
●真空结晶，蒸馏，注入，预冷/Crystallization, vacuum distillation, injection, precooling
●真空过滤，罐装，压缩/Vacuum filter, canned, compression
●真空镀膜及工业炉作为前级泵及预抽泵/Vacuum coating and the industrial furnace as the backing pump and drainage pump
●粉体物料或液体的真空输送，收集/Powder material or liquid vacuum conveying, collection
●真空包装及食品加工工艺/Vacuum packaging and food processing technology
●热成型（吸塑，压空，发泡成型）/Thermoforming (blister, pressure air and foam molding)
●真空除气，脱泡，浸渗，浓缩，干燥/The vacuum degassing, deaeration, impregnation, concentration, drying
●真空吸附，夹具，吊具，吸盘/Vacuum adsorption, fixture, spreader, chuck/div>
●真空压合，定型，贴膜/Vacuum pressure, finalize the design, the paster
●工厂，医院，实验室的中央真空系统/Factory, hospital, laboratory, the central vacuum system
●和其他类型真空泵组合成特殊用途的真空机组/And other types of vacuum pump, vacuum unit of the special purposes
